Mini-Vertical Systems

Download Product Bulletin (pdf)

MGV-102 (single vertical unit) and MGV-202 (dual vertical unit) fit glass plate sizes of 11.3 cm (w) x 10 cm (h).

• The internal cooling chamber of Dual units provides the capability of running 2 gels simultaneously under identical temperature controlled buffer conditions

• Compatible Blotting Systems run up to 4 gels at a time

• Choice of 2 methods for handcasting of gels

• Small size permits rapid analysis of samples and reduces use of expensive reagents needed for gel formation and running buffer.

• A wide assortment of accessories are available for all sizes.

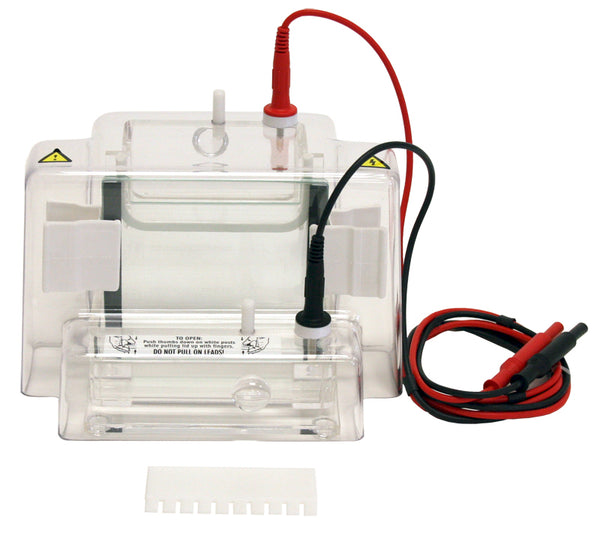

Single Mini-Vertical

MGV-102

Complete System:

• Electrophoresis Unit

• Silicone gaskets on front of unit

• Platinum electrodes

•  Safety cover with power leads

• 1 comb (0.75mm x 10 well)

• 1 sets of Gel Wrap® glass plates

• 1 sets of Gel Wrap® spacers (0.75mm)

• 1 Gel Wrap® gasket

• 5 spring clamps (2ea. cat. # GPC-0003 and 3ea. cat. # GPC-0002)

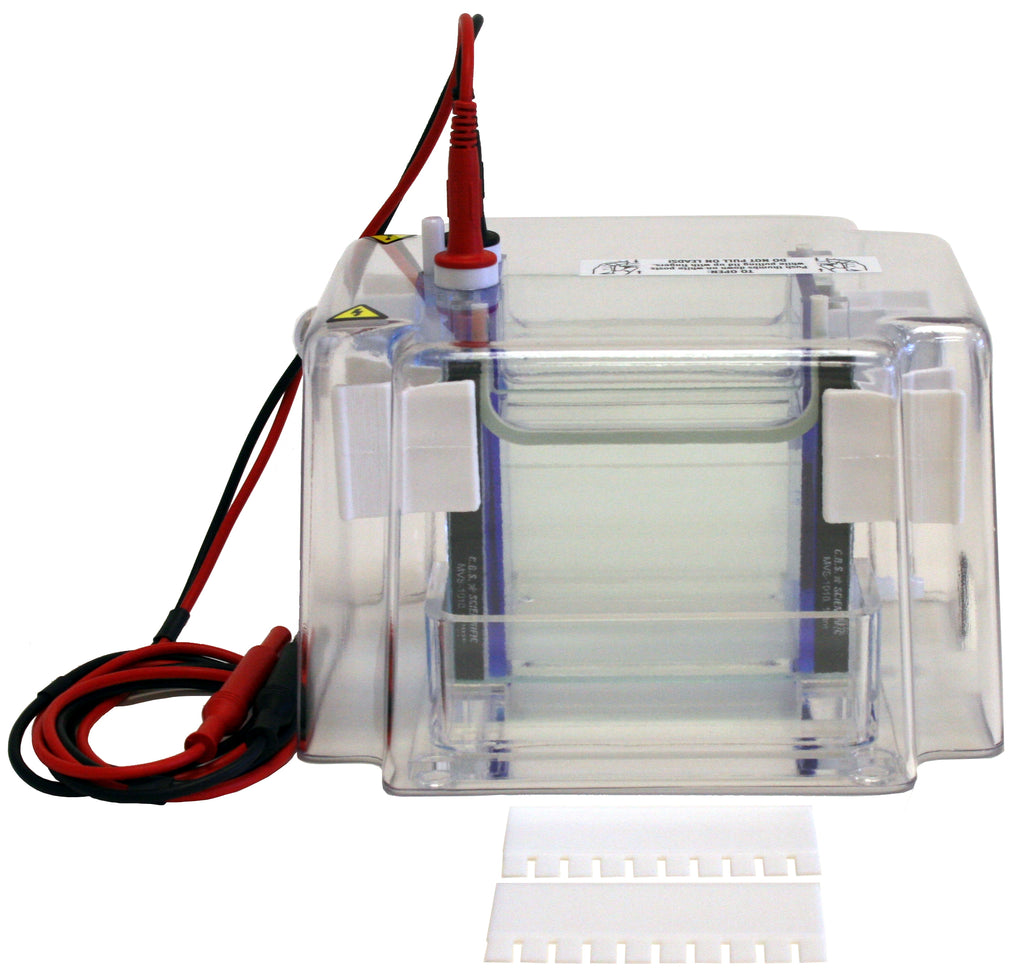

Dual Mini-Vertical

MGV-202

Complete System:

• Electrophoresis Unit with internal cooling chamber and coolant recirculation ports

• Silicone gaskets on both sides of unit

• Platinum electrodes

•  Safety cover with power leads (power leads cat. # PLMF-048T)

• 2 combs (0.75mm x 10 well)

• 2 sets of Gel Wrap® glass plates

• 2 sets of Gel Wrap® spacers (0.75mm)

• 2 Gel Wrap® gaskets

• 10 spring clamps  (4ea. cat. # GPC-0003 and 6ea. cat. # GPC-0002)

• Conversion plate for running one gel at a time
