CBS Scientific

Adjustable Height Sequencers

SG-400-20
Regular price $1,132.00 $0.00 Unit price per

Download Product Bulletin (pdf)

Unsurpassed versatility - designed to adapt to changing methodologies

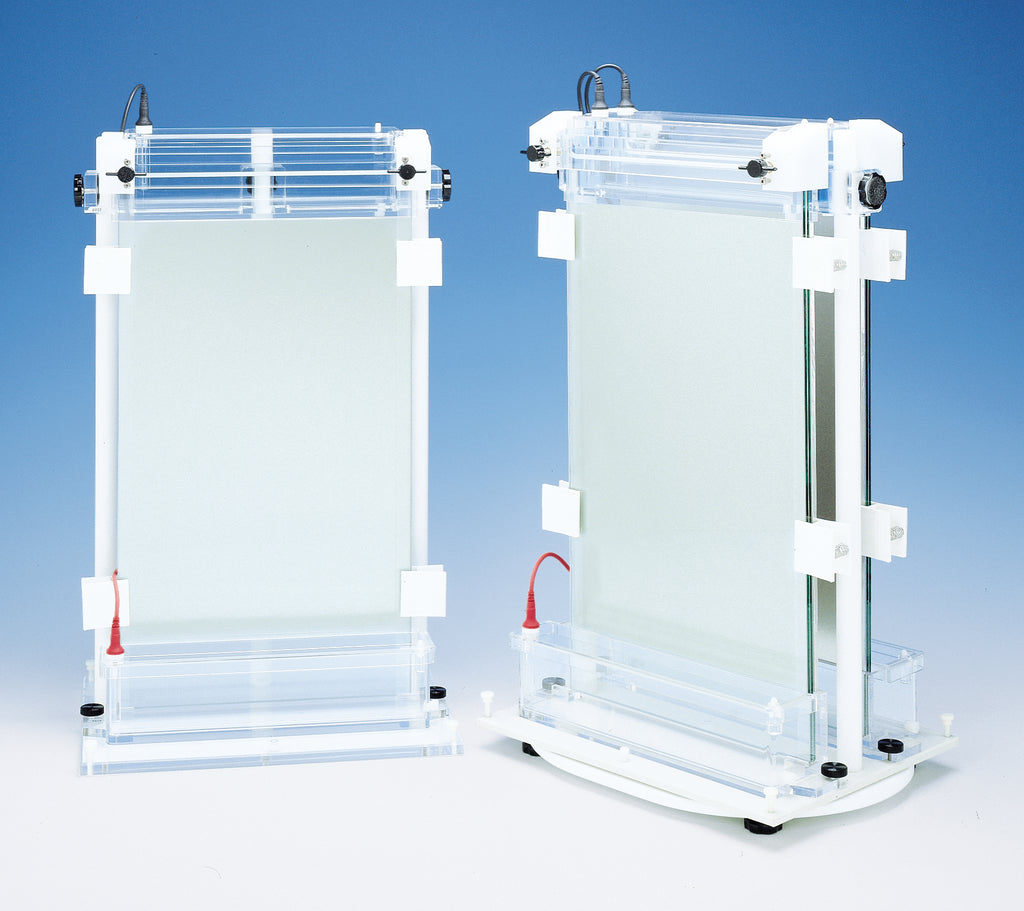

C.B.S. Scientific’s Adjustable Height Sequencers are available in two widths, 20cm or 33cm. Sequencing gel pathlength for either width can be adjusted from 22cm up to 42cm. The upper buffer reservoir rides on three 1” diameter delrin rods and is secured at the desired height by three stainless steel thumbscrews. These rods are arranged in a triangular configuration on a 1/2” thick acrylic base to add strength and stability to the whole system. Unit can be easily disassembled into components for compact storage. Additional accessory choices are available to accommodate Large Format Protein Gel applications.


C.B.S. Scientific’s Dual Adjustable Sequencers are available in two widths, 20cm or 33cm. Sequencing gel pathlength for either width can be adjusted from 22cm up to 42cm. The upper reservoir is divided in half, allowing the researcher to run identical or independent buffer conditions on either side. The rotating base allows the unit to rotate 180º, providing easy access to either side. Accessory aluminum cooling plates and accessory bar clamps (shown in photo) must be ordered separately. Additional accessory choices are available to accommodate Large Format Protein Gel applications.

(Also available in heights of 52 and 62 cm. Please inquire at info@cbssci.com)

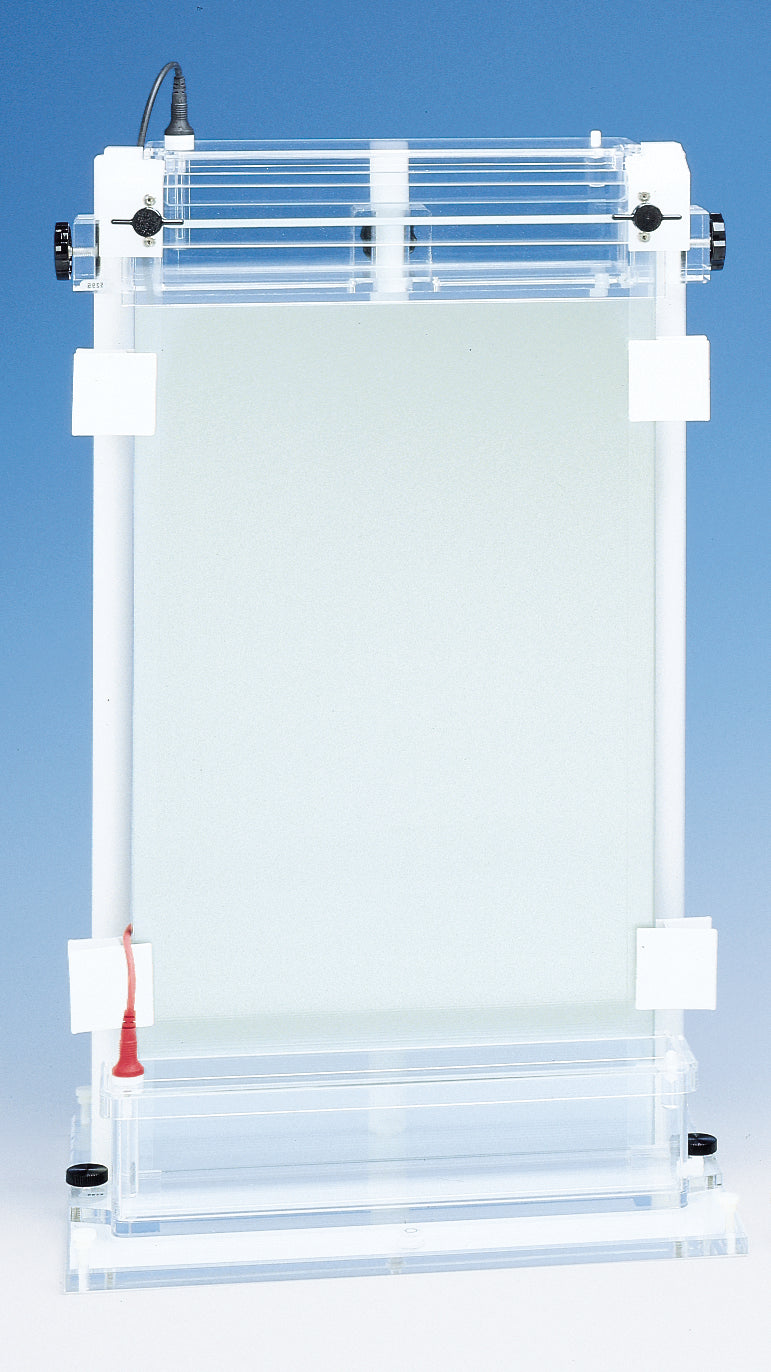

Adjustable Height Sequencers, Single

SG-400-20, SG-400-33

Complete System:

• Single vertical electrophoresis cell with safety covers and power leads

• Leak proof silicone gasket on upper reservoir to which the glass plates are clamped

• Platinum electrodes

• Leveling base with bubble level

• 1 comb

• 1 set glass plates

• 1 set of spacers

• 1 bottle of Gel Repel™

• 1 roll gel sealing tape

• 1 wedge plate separator

• White spring clamps

• Buffer drainage ports

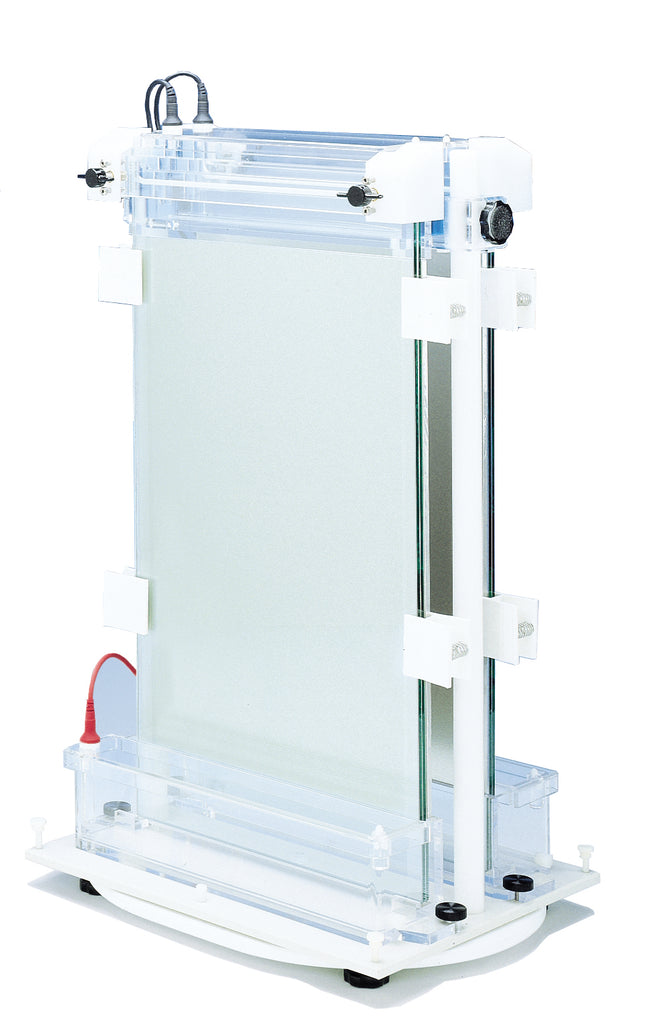

Dual Adjustable Height Sequencers

DASG-400-20, DASG-400-33

Complete System:

• Dual vertical electrophoresis cell with rotating leveling base with bubble level

• Safety covers with power leads

• Leak proof silicone gasket on upper reservoir to which the glass plates are clamped

• Platinum electrodes

• Divided upper reservoir

• 2 combs

• 2 sets glass plates

• 2 sets of spacers

• 1 bottle of Gel Repel™

• 1 roll gel sealing tape

• 2 wedge plate separators

• White spring clamps

• Buffer drainage ports
